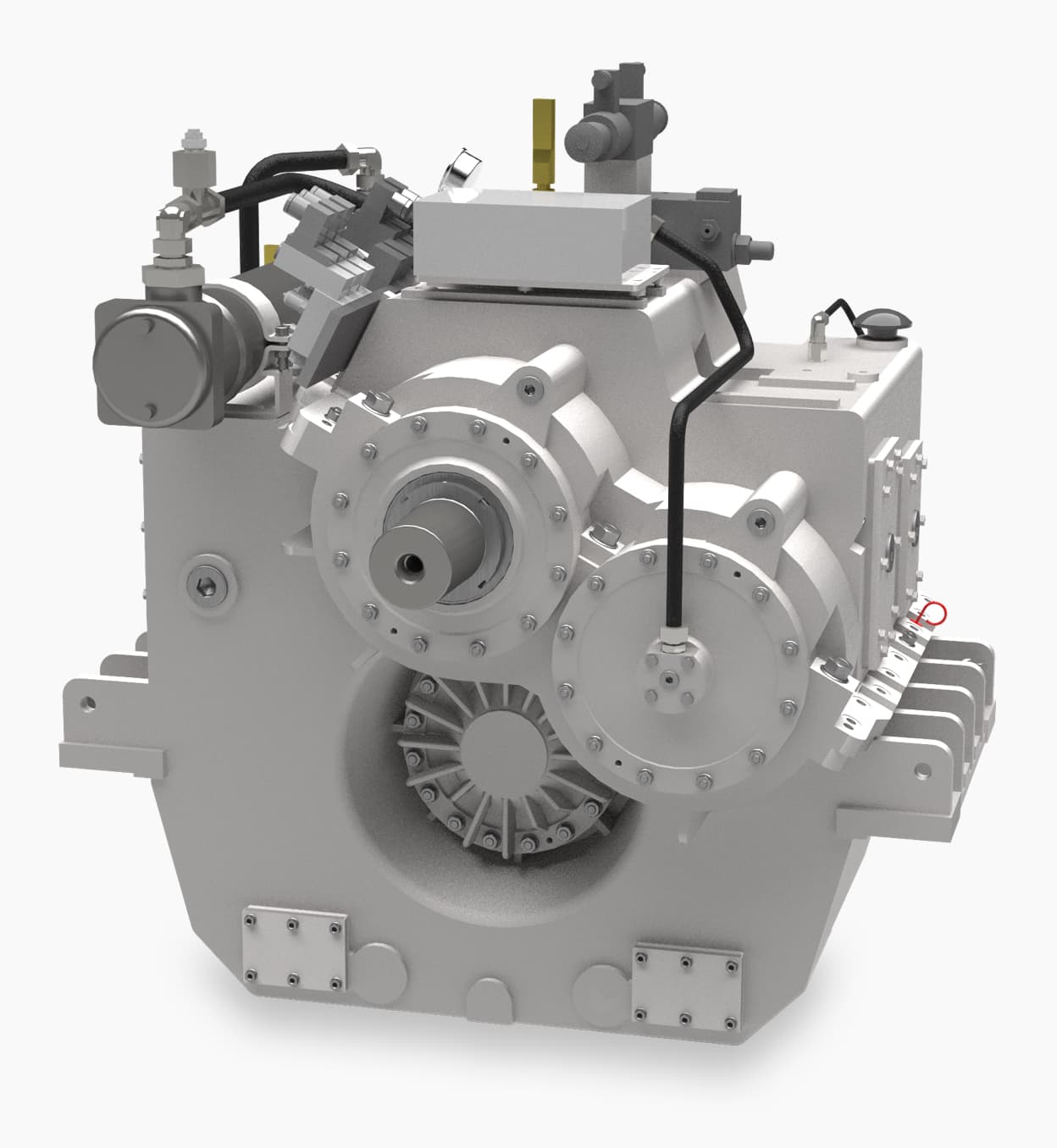

WVS 234 - 2240
Gearboxes of the WVS series have been specially designed for fast vessels such as naval units, patrol boats, yachts and other vessels with similarly high performance demands.
Subject to technical modifications.

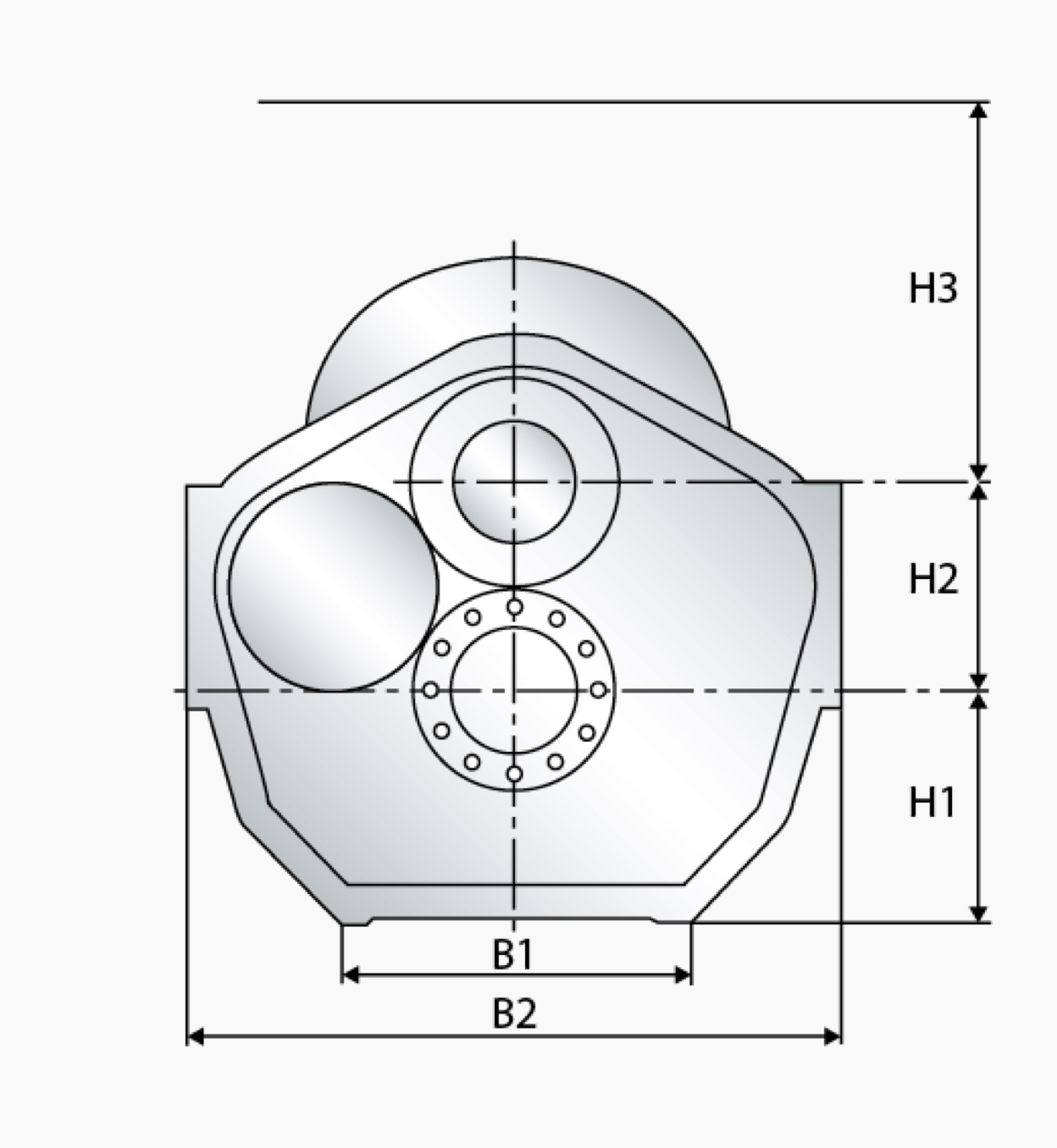

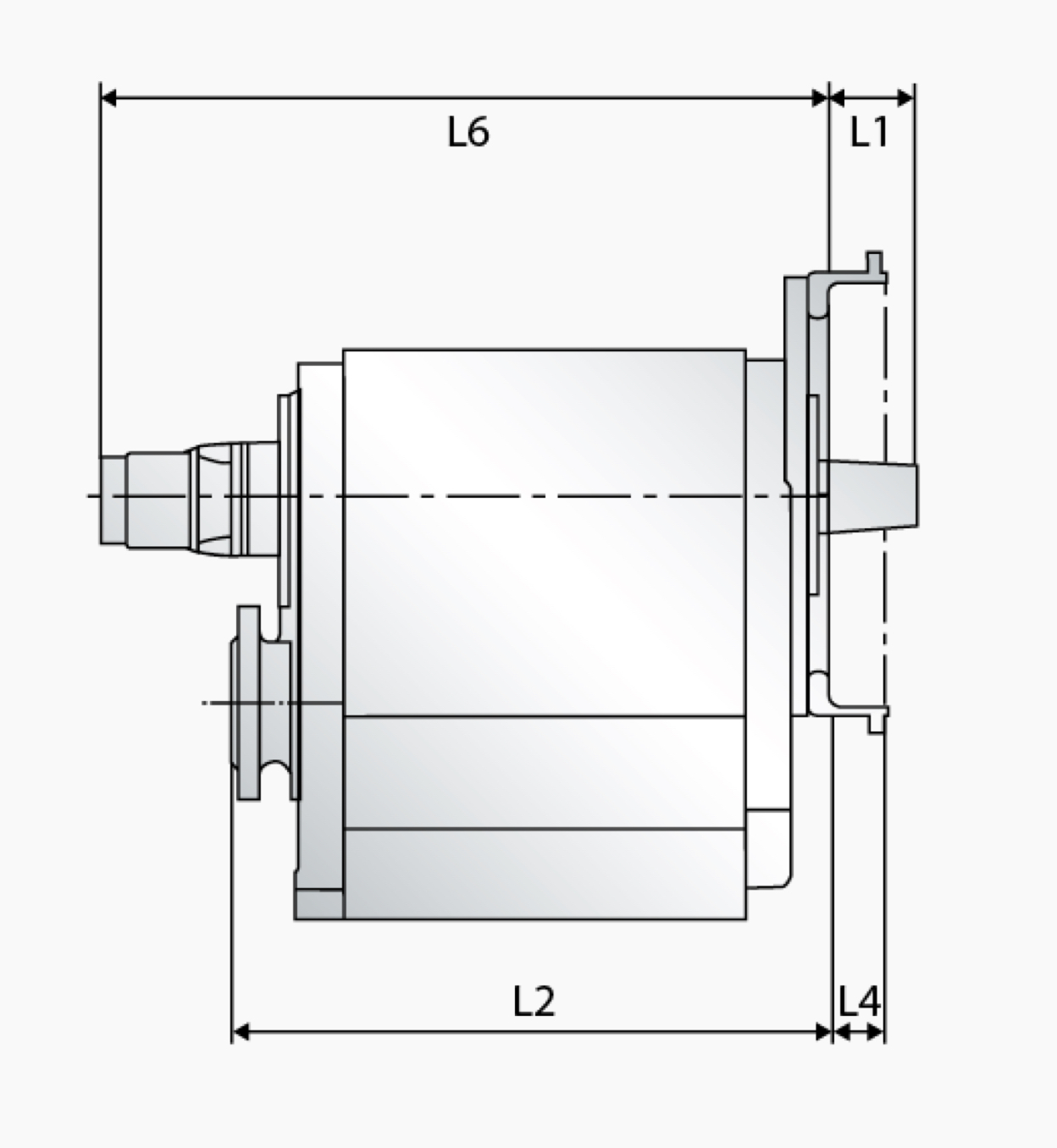

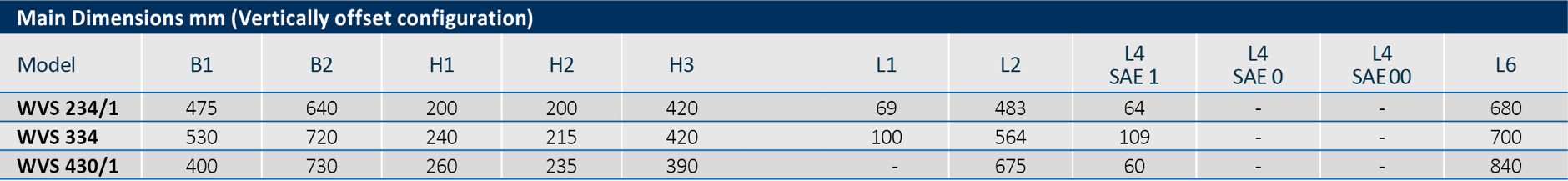

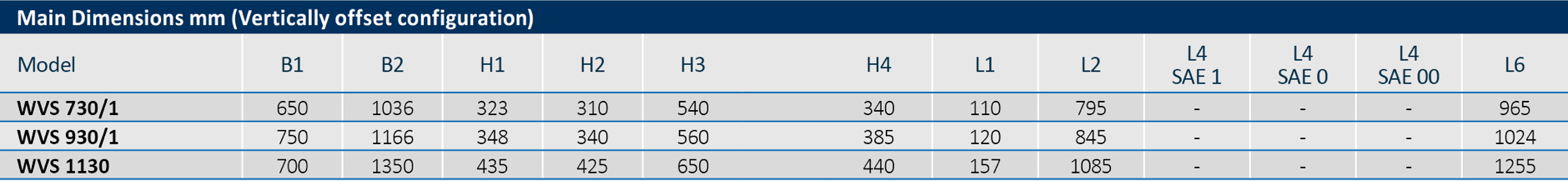

Main Dimensions

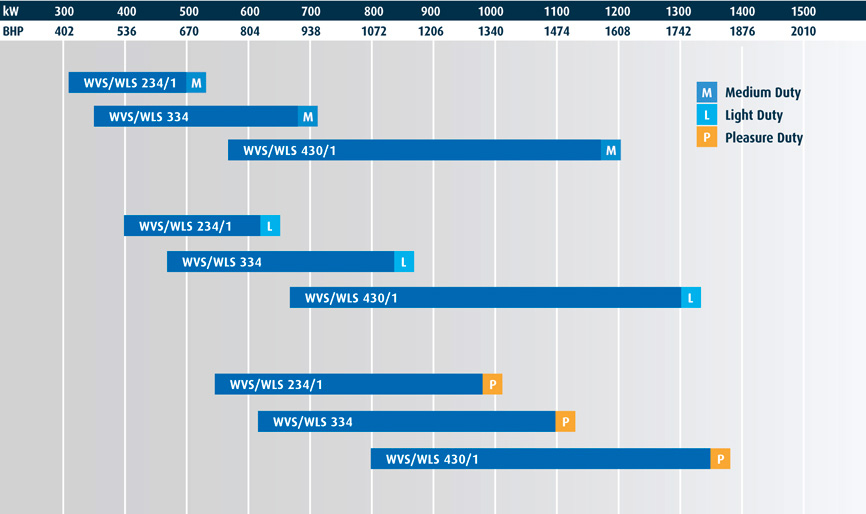

Ratings

Versions
- Housing made from aluminium alloy
- Prepared for mounting of SAE bell housings
- Spur wheels helically toothed, case-hardened with ground tooth flanks
- Hydraulically operated disc clutches with steel / sinter friction surface
- Smooth engagement by means of adapted pressure increase during shifting
- Full power transmission and identical reduction ratio in both output senses of rotation
- Integrated oil sump
- Common circuit for operating oil and lube oil
- Oil pump and oil filter accessible from the outside
- Fitted heat exchanger for cooling water inlet temperature of max. 32 °C, seawater resistant
- Fitted manometer for operating pressure as well as connection for remote supervision of pressure and temperature
- Control valve with electric operation
- Input: free shaft end with taper 1:30
- Input: flange (WVS/U)
- Output: forged-on flange
- Paint coating with synthetic resin varnish. Colour: RAL 7001 silver grey
- Rigid or resilient mounting
- SAE bell housing
- Output: counter flange
- Flexible coupling
- Supervision instruments
- Spare parts kit as per classification rules
- Trolling propulsion system (ADS)
- Auxiliary drives (PTO and PTI)
- Control valve with mechanical operation
- Special reduction ratios
Options WVS 234/1 – 430/1

The gearboxes can be fitted with an additional Power Take Off or Power Take In (application: hydraulic pumps and generators).

Monitoring of all key data for maintenance purposes.
All gearboxes can be supplied with additional supervision instruments, according to classification requirements, enabling the operator to take all necessary information from the bridge.
Options WVS 730/1 – 2240
The gearboxes can be fitted with an additional Power Take Off or Power Take In (application: hydraulic pumps and generators).
Gear units of the WVS series are also available partially offset.
Monitoring of all key data for maintenance purposes.
All gearboxes can be supplied with additional supervision instruments according to classification requirements, enabling the operator to take all necessary information from the bridge.

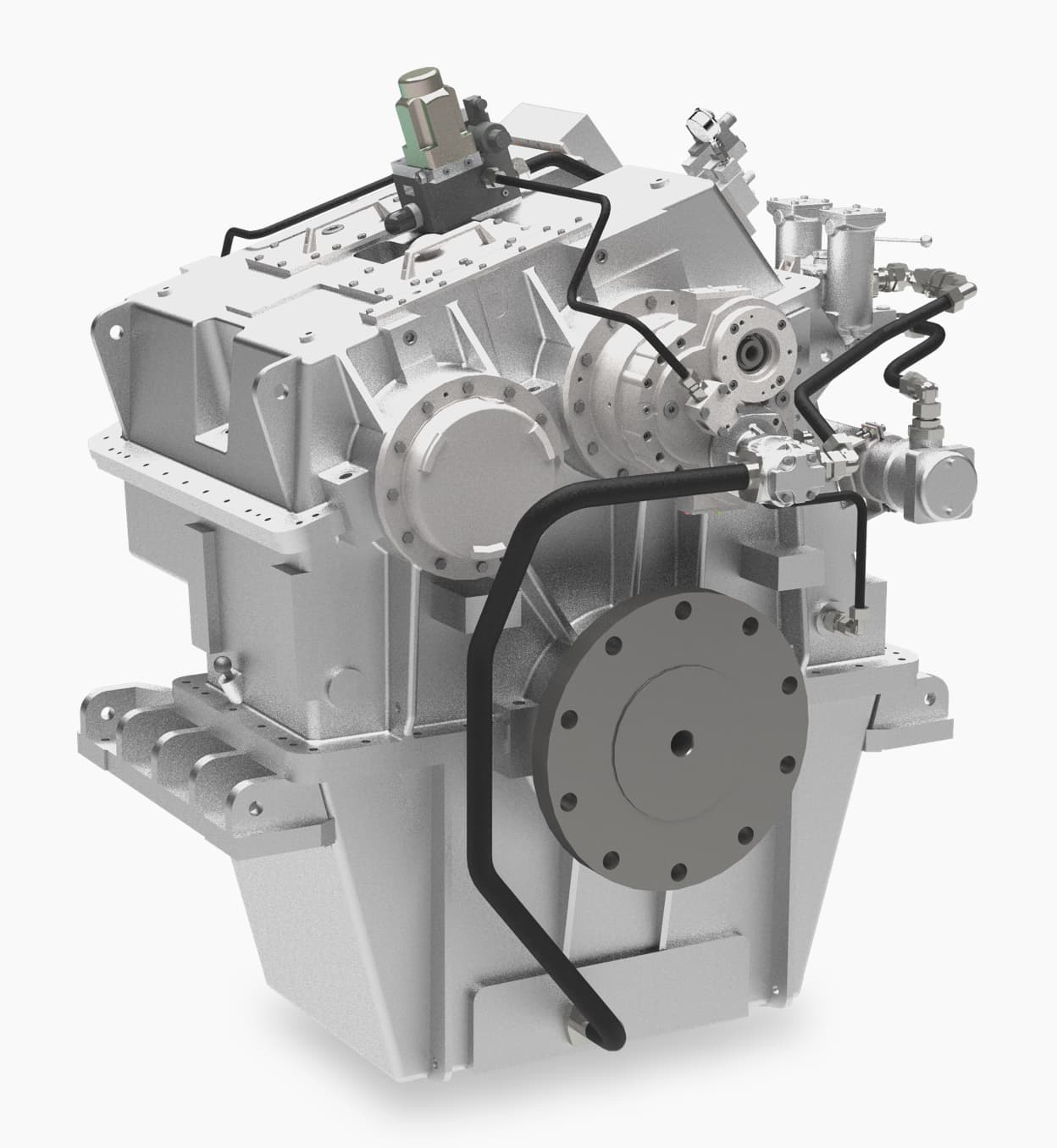

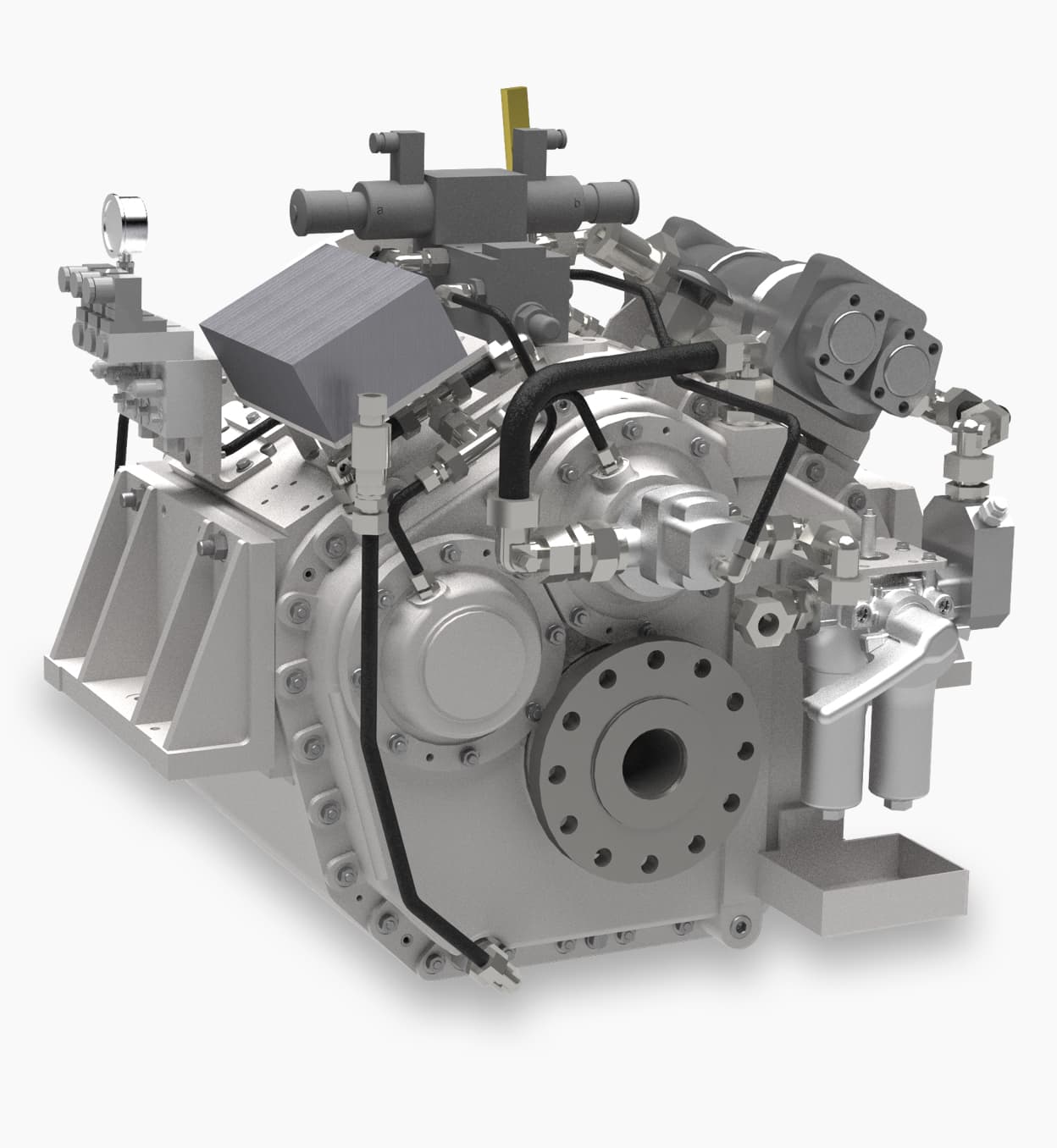

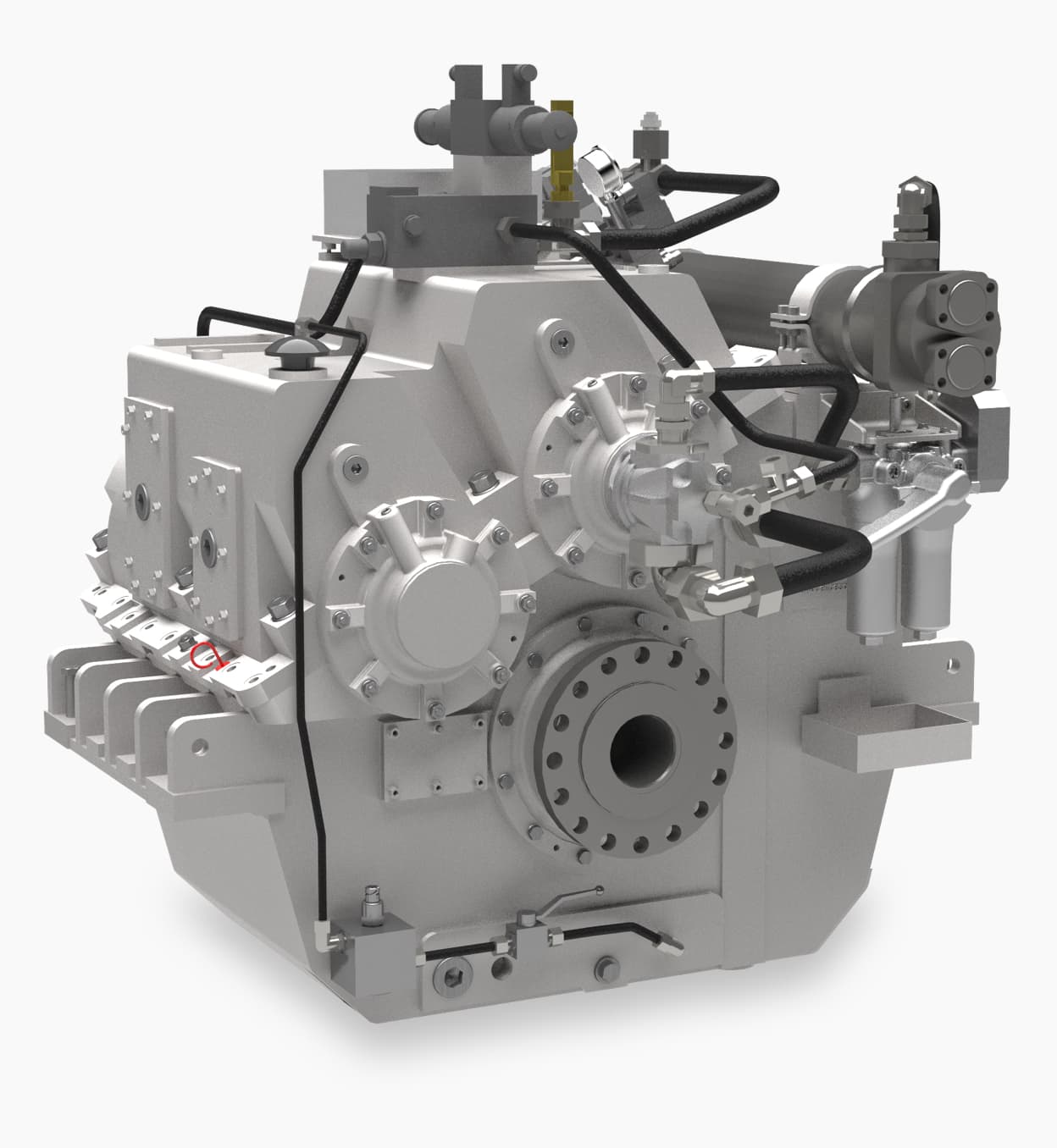

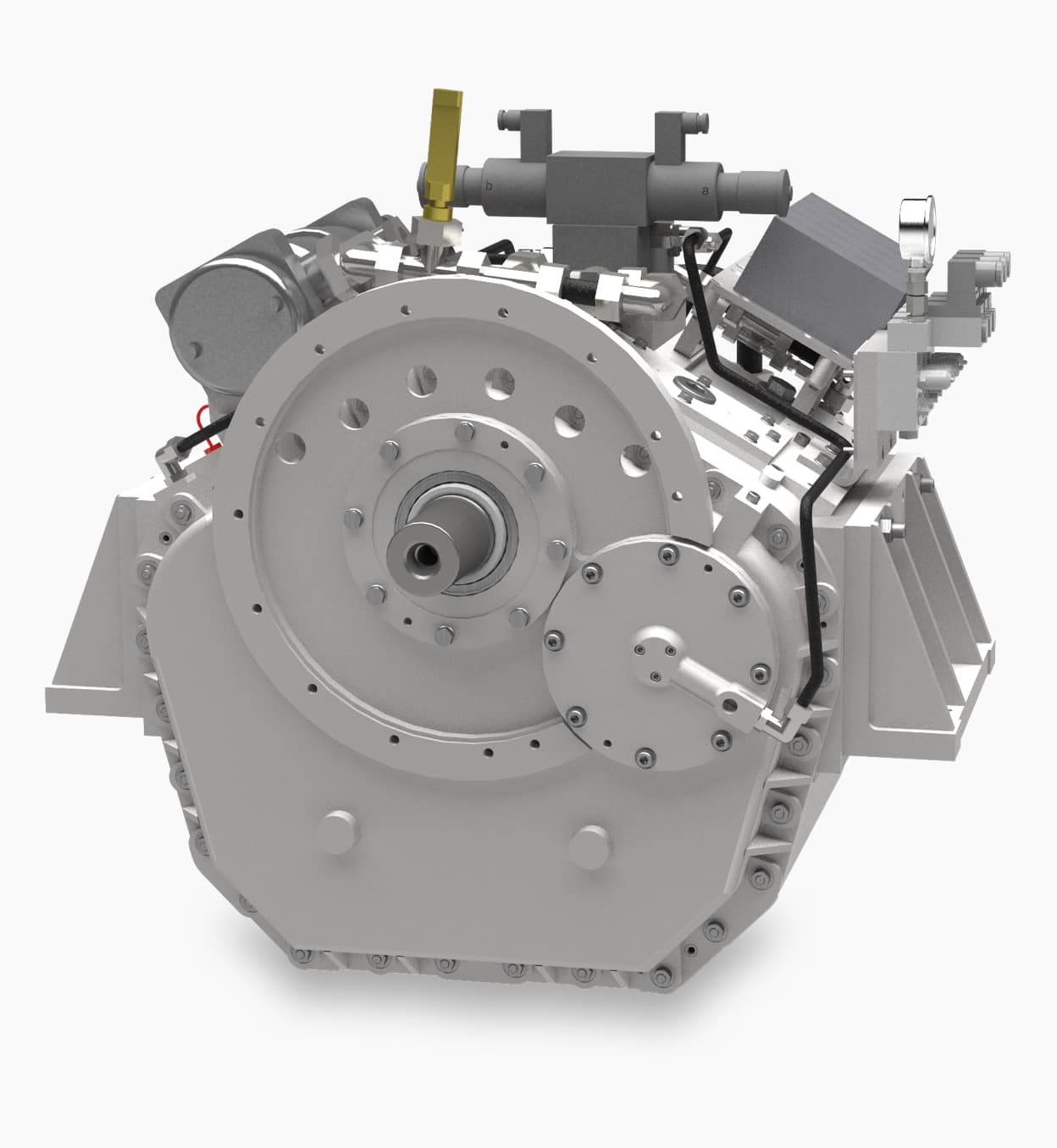

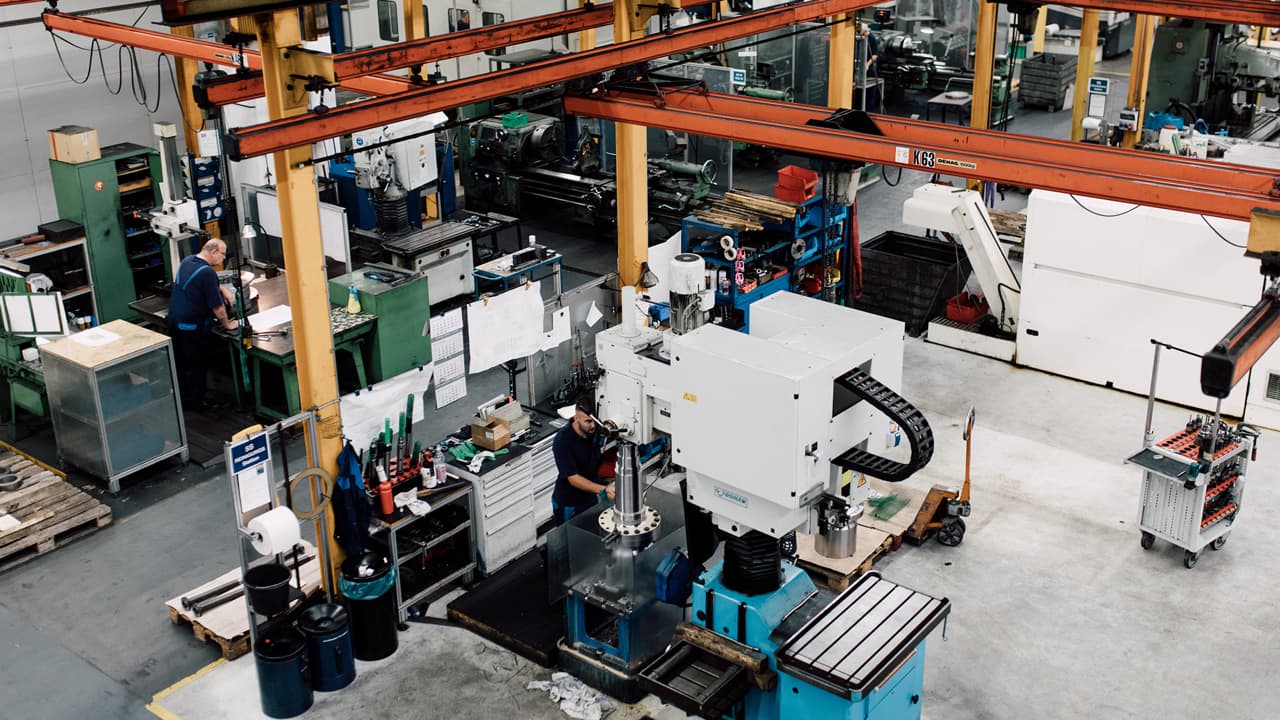

Impressions
